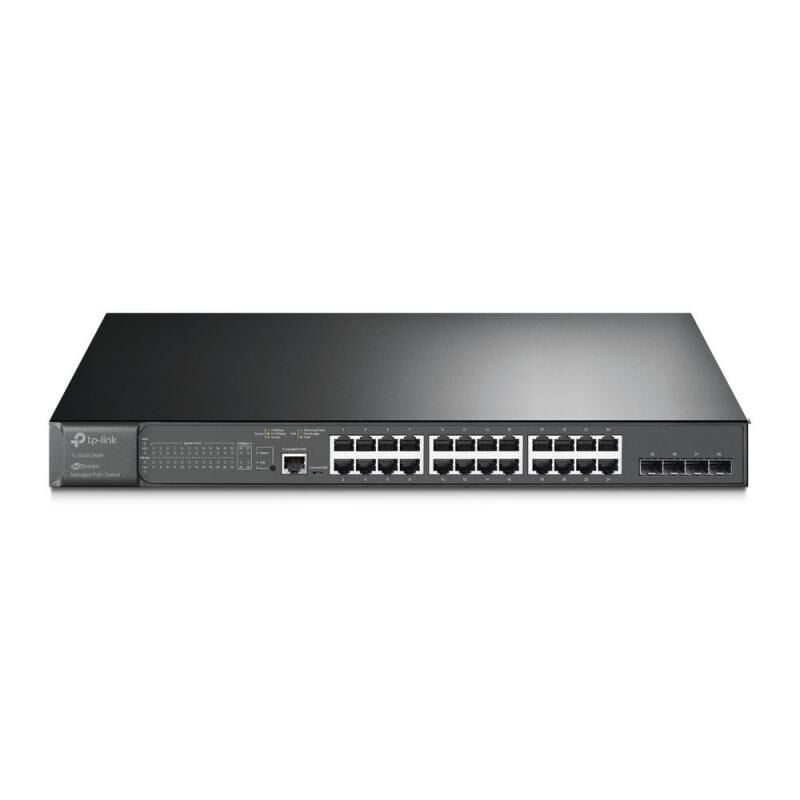

TP-LINK TL-SG3428MP JetStream 28-Port Gigabit and 4-Port L2

DONANIM ÖZELLİKLERİ
Arabirim - 24× 10/100/1000Mbps RJ45 Ports
- 4× Gigabit SFP Slots
- 1× RJ45 Console Port
- 1× Micro-USB Console Port
Fan Sayısı 2
Güç Kaynağı 100-240 V AC~50/60 Hz
PoE+ Portları (RJ45) - Standard: 802.3at/af compliant
- PoE+ Ports: 24 Ports, up to 30 W per port
- Power Budget: 384 W
Boyutlar ( W X D X H ) 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm)
Montaj Rack Mountable
Maks. Güç Tüketimi - 31.0 W (110 V/60 Hz) (no PD connected)
- 463.8 W (110 V/60 Hz) (with 384 W PD connected)
Max Heat Dissipation - 105.78 BTU/h (110 V/60 Hz) (no PD connected)
- 1582.49 BTU/h (110 V/60 Hz) (with 384 W PD connected)
PERFORMANS
Anahtarlama Kapasitesi 56 Gbps
Paket Yönlendirme Hızı 41.66 Mpps
MAC Adres Tablosu 8K
Jumbo Frame 9 KB
YAZILIM ÖZELLİKLERİ
Quality of Service - 8 priority queues
- 802.1p CoS/DSCP priority
- Queue scheduling
- SP (Strict Priority)
- WRR (Weighted Round Robin)
- SP+WRR
- Bandwidth Control
- Port/Flow based Rating Limiting
- Smoother Performance
- Action for Flows
- Mirror (to supported interface)
- Redirect (to supported interface)
- Rate Limit
- QoS Remark
L2 ve L2+ Özellikleri - Link Aggregation
- Static link aggregation
- 802.3ad LACP
- Up to 8 aggregation groups and up to 8 ports per group
- Spanning Tree Protocol
- 802.1d STP
- 802.1w RSTP
- 802.1s MSTP
- STP Security: TC Protect, BPDU Filter, BPDU Protect, Root Protect,
Loop Protect
- Loopback Detection
- Port-based
- VLAN based
- Flow Control
- 802.3x Flow Control
- HOL Blocking Prevention
- Mirroring
- Port Mirroring
- CPU Mirroring
- One-to-One
- Many-to-One
- Tx/Rx/Both
L2 Multicast - Supports 511 (IPv4, IPv6) IGMP groups
- IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
- IGMP Snooping Querier
- IGMP Authentication
- IGMP Authentication
- MVR
- MLD Snooping
- MLD v1/v2 Snooping
- Fast Leave
- MLD Snooping Querier
- Static Group Config
- Limited IP Multicast
- Multicast Filtering: 256 profiles and 16 entries per profile
VLAN - VLAN Group
- Max 4K VLAN Groups
- 802.1q Tagged VLAN
- MAC VLAN: 12 Entries
- Protocol VLAN: Protocol Template 16, Protocol VLAN 16
- GVRP
- VLAN VPN (QinQ)
- Port-Based QinQ
- Selective QinQ
- Voice VLAN
Erişim Kontrol Listesi - Time-based ACL
- MAC ACL
- Source MAC
- Destination MAC
- VLAN ID
- User Priority
- Ether Type
- IP ACL
-Source IP
- Destination IP
- Fragment
- IP Protocol
- TCP Flag
- TCP/UDP Port
- DSCP/IP TOS
- User Priority
- Combined ACL
- Packet Content ACL
- IPv6 ACL
- Policy
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
- ACL apply to Port/VLAN
Güvenlik - IP-MAC-Port Binding
- DHCP Snooping
- ARP Inspection
- IPv4 Source Guard
- IPv6-MAC-Port Binding
- DHCPv6 Snooping
- ND Detection
- IPv6 Source Guard
- DoS Defend
- Static/Dynamic Port Security
- Up to 64 MAC addresses per port
- Broadcast/Multicast/Unicast Storm Control
- kbps/ratio/pps control mode
- IP/Port/MAC based access control
- 802.1X
- Port based authentication
- Mac based authentication
- VLAN Assignment
- MAB
- Guest VLAN
- Support Radius authentication and accountability
- AAA (including TACACS+)
- Port Isolation
- Secure web management through HTTPS with SSLv3/TLS 1.2
- Secure Command Line Interface (CLI) management with SSHv1/SSHv2
IPv6 - IPv6 Dual IPv4/IPv6
- Multicast Listener Discovery (MLD) Snooping
- IPv6 ACL
- IPv6 Interface
- Static IPv6 Routing
- IPv6 neighbor discovery (ND)
- Path maximum transmission unit (MTU) discovery
- Internet Control Message Protocol (ICMP) version 6
- TCPv6/UDPv6
- IPv6 applications
- DHCPv6 Client
- Ping6
- Tracert6
- Telnet (v6)
- IPv6 SNMP
- IPv6 SSH
- IPv6 SSL
- Http/Https
- IPv6 TFTP
L3 Özellikleri - 16 IPv4/IPv6 Interfaces
- Static Routing
- 48 static routes
- Static ARP
- 316 ARP Entries
- Proxy ARP
- Gratuitous ARP
- DHCP Server
- DHCP Relay
- DHCP L2 Relay
Yönetim - Web-based GUI
- Command Line Interface (CLI) through console port, telnet
- SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
- SDM Template
- DHCP/BOOTP Client
- 802.1ab LLDP/LLDP-MED
- DHCP AutoInstall
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- EEE
- Password Recovery
- SNTP
- System Log
Gelişmiş Özellikler - Support Omada Hardware Controller (OC200/OC300),
Software Controller, Cloud-Based Controller
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
- ZTP (Zero-Touch Provisioning)*
DİĞERLERİ
Sertifika CE, FCC, RoHS
Paket İçeriği - TL-SG3428MP Switch
- Power Cord
- Quick Installation Guide
- Rackmount Kit
- Rubber Feet
Ortam - Operating Temperature: 0-45 ? (32-113 ?);
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing

Port Tipi	LC/UPC
Veri Transfer Hızı	10/100/1000
Port Sayısı (Adet)	28,0
Yönetim	Layer 2
Paket Yönlendirme Hızı	41.7 Mpps
Fan Sayısı (Adet)	2,0
Güç Kaynağı	50/60 Hz
Boyutlar	17.3 X 13.0 X 1.7 inç
Standart	IEEE 802.3X
Satış Garanti Süresi (ay)	24
EAN	6935364010737

Ürün Adı: TP-LINK TL-SG3428MP JetStream 28-Port Gigabit and 4-Port L2

Ürün Kodu: TL-SG3428MP
