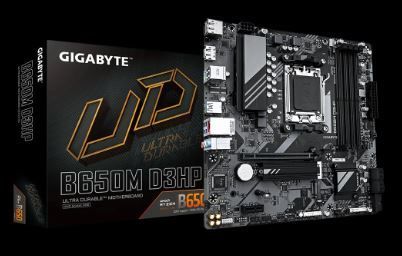

GIGABYTE B650M-D3HP AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors

Unparalleled Performance:8+2+1 Phases Digital VRM Solution
Dual Channel DDR5:4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory
Module
Support
SuperSpeed Storage 2 PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard:To Ensure VRM Power
Stability 25110 M.2 SSD Performance
EZ-Latch PCIe x16 Slot with Quick Release Design
Fast Networks 2.5GbE LAN
Extended Connectivity:DP HDMI USB-C® 10Gb/s
Smart Fan 6 Features Multiple Temperature Sensors Hybrid Fan Headers
with FAN STOP
Q-Flash Plus Update BIOS Without Installing the CPU Memory and Graphics
Card

İşlemci Soket Tipi	AM5
Chip Set	AMD B650
Ram Slot Sayısı	4 Adet
Max Ram Desteği	192GB
RAM Tipi	DDR5
Ram Frekans Hızı	4800 MHz,5200 MHz,5600 MHz,6000 MHz,6200 MHz,6400 MHz
İşlemci Desteği	Ryzen 7,Ryzen 9
Anakart Boyutu	ATX
USB 3.2	3 Adet
USB 3.1	2 Adet
USB 2.0	6 Adet
PCI Express 3.0 x16	1 Adet
M.2 Slotu	1 Adet
Sata 6Gb/s	4 Adet
HDMI	Var
DP (Display Port)	Var
Lan Hızı	10/100/1000Mbps
Ses Chip Set	Realtek ALC887
Ses Kanal Sayısı	5.1 Kanal
Satış Garanti Süresi (ay)	24
EAN	4719331857851

Ürün Adı: GIGABYTE B650M-D3HP AMD Socket AM5:Supports AMD Ryzen™ 7000 Series Processors

Ürün Kodu: B650M-D3HP
